Inverted T-shaped bed, with the workbench moving on both sides and the center of gravity always inside the base, carrying a heavy load and maintaining long-term accuracy
Standard BT50190 outer diameter spindle, capable of strong cutting
Standard 1 °/1 toothed disc turntable (optional 0.001 °), high accuracy, large load-bearing capacity, hydraulic locking, capable of re cutting
Fully enclosed sheet metal, double door design, large front door, easy to lift upper and lower workpieces
Standard with two screw chips and one chain chip conveyor

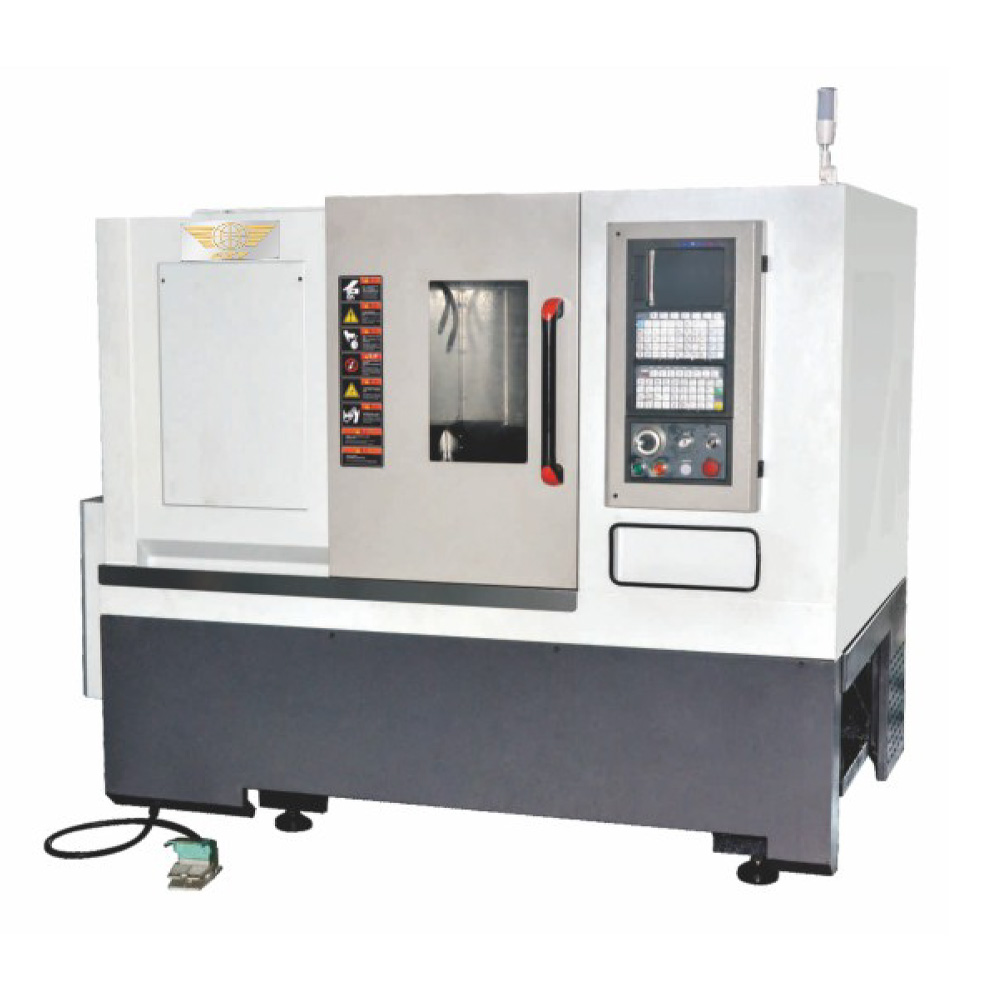

项目 | 单位 | FZY-52 |
---|---|---|
床身上零件[敏感词]回转直径 | mm | Φ500 |
过主轴[敏感词]棒料直径 | mm | Φ52 |
过托板[敏感词]回转直径 | mm | Φ360 |
X轴快移速度 | mm/min | 20000 |
Z轴快移速度 | mm/min | 24000 |
×轴[敏感词]行程 | mm | 400 |
Z轴[敏感词]行程 | mm | 520 |
×.Z轴重复定位精度 | mm | ±0.003 |
X.Z定位精度 | mm | ±0.005 |
套筒主轴 | mm | (A2-6) |
主轴转速 | rpm | 50-3000 |
主轴通孔 | mm | Φ65 |
主电机 | Kw | 11 |
卡盘直径 | mm | 8寸 |
刀盘直径 | mm | Φ360 |
中心高 | mm | 80(12工位) |
床身结构形式 | 30度斜床身 | |
夹紧方式 | 液压 | |
润滑方式 | 自动润滑 | |
冷却泵功率 | W | 370 |
照明 | V | 220 |
发那科系统 | 选配 | |
机床外形尺寸(长×宽×高) | mm | 2210×1680×1700 |
机器重量 | T | 3.5 |
