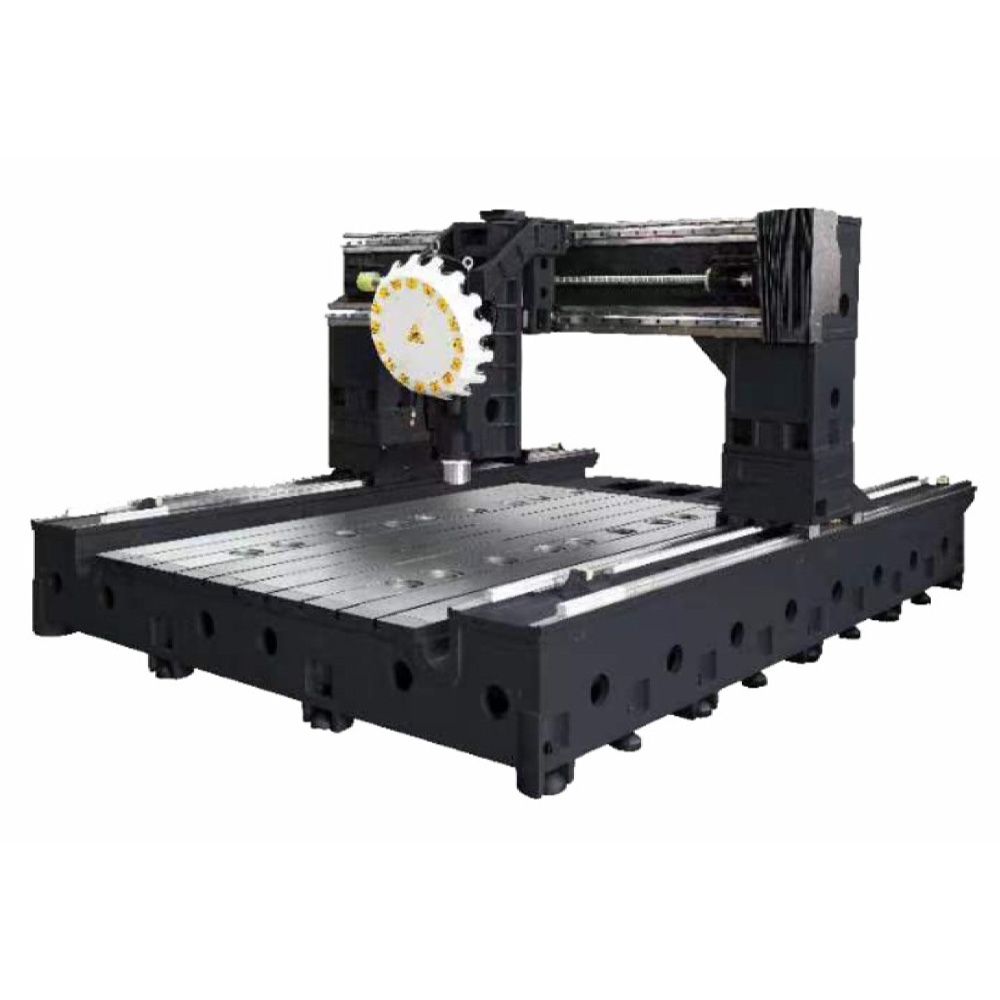

CNC钻铣设备 FZY-3020
所属类别:CNC钻铣设备
咨询热线:0752-3598895
产品详情

Inverted T-shaped bed, with the workbench moving on both sides and the center of gravity always inside the base, carrying a heavy load and maintaining long-term accuracy
Standard BT50190 outer diameter spindle, capable of strong cutting
Standard 1 °/1 toothed disc turntable (optional 0.001 °), high accuracy, large load-bearing capacity, hydraulic locking, capable of re cutting
Fully enclosed sheet metal, double door design, large front door, easy to lift upper and lower workpieces
Standard with two screw chips and one chain chip conveyor



技术参数
项目 单位 FZY-3020
主轴鼻端至工作台面距离 mm
工作台尺寸 mm 3200X2000
工作台[敏感词]荷重 kg 4000
门宽(有效门宽) mm 2100
主轴中心至立柱导轨面距离 mm 150-650
主轴端面至工作台面距离 mm
工作台T型槽 mm 9-22X200
主轴锥孔/直径 BT40(120)
主轴转速 rpm/min 12000
主轴功率 KW
行程(X/Y/Z) mm 3000X2000X500
快移速度(X/Y/Z) m/min 40/32/32
三轴电机功率(XYZ) KW
滚珠丝杆 mm
线性导轨((线轨宽度/滑块数量) mm
刀柄 mm
定位精度 mm
重复定位精度 mm
机器重量 T 11.8
外观尺寸 mm
